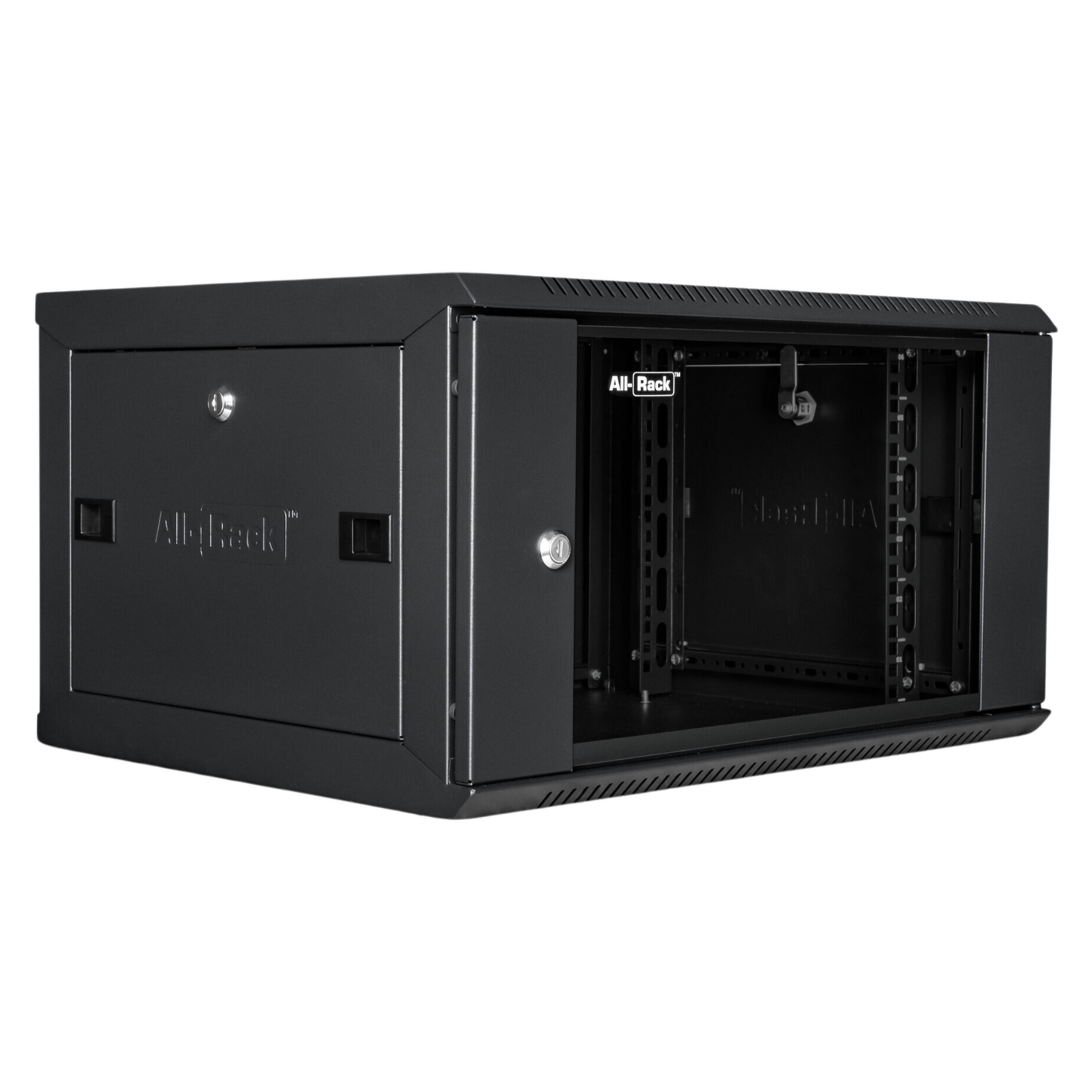

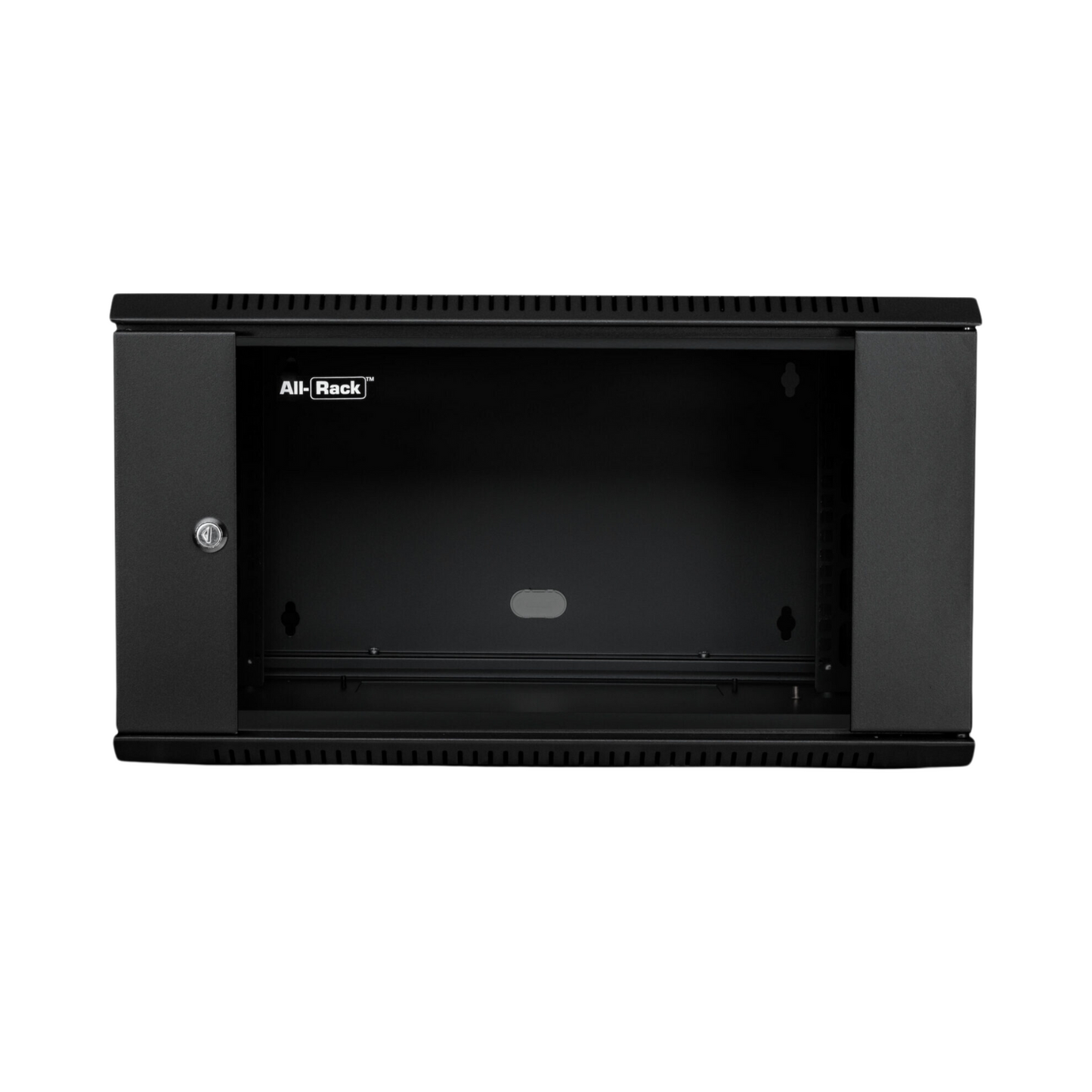

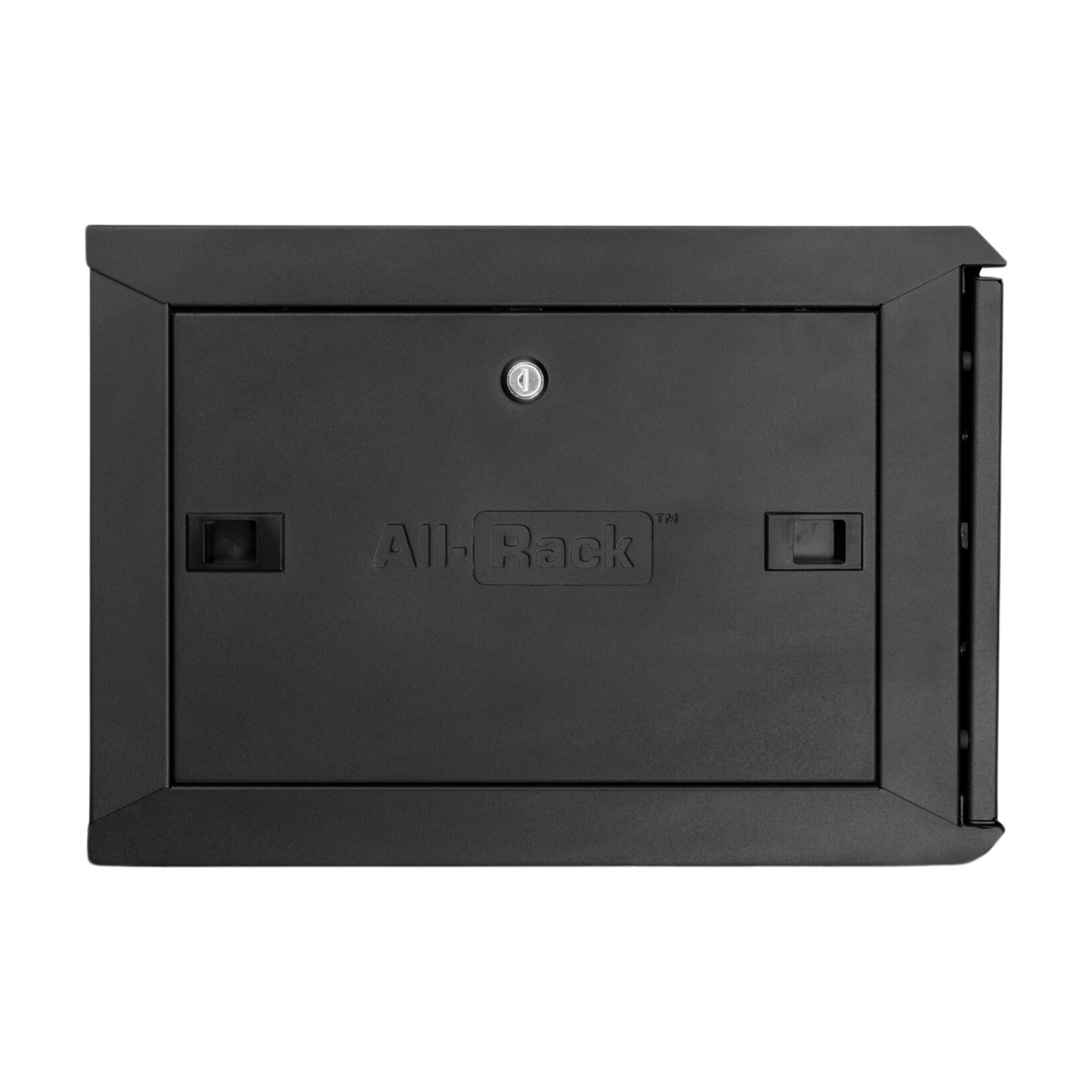

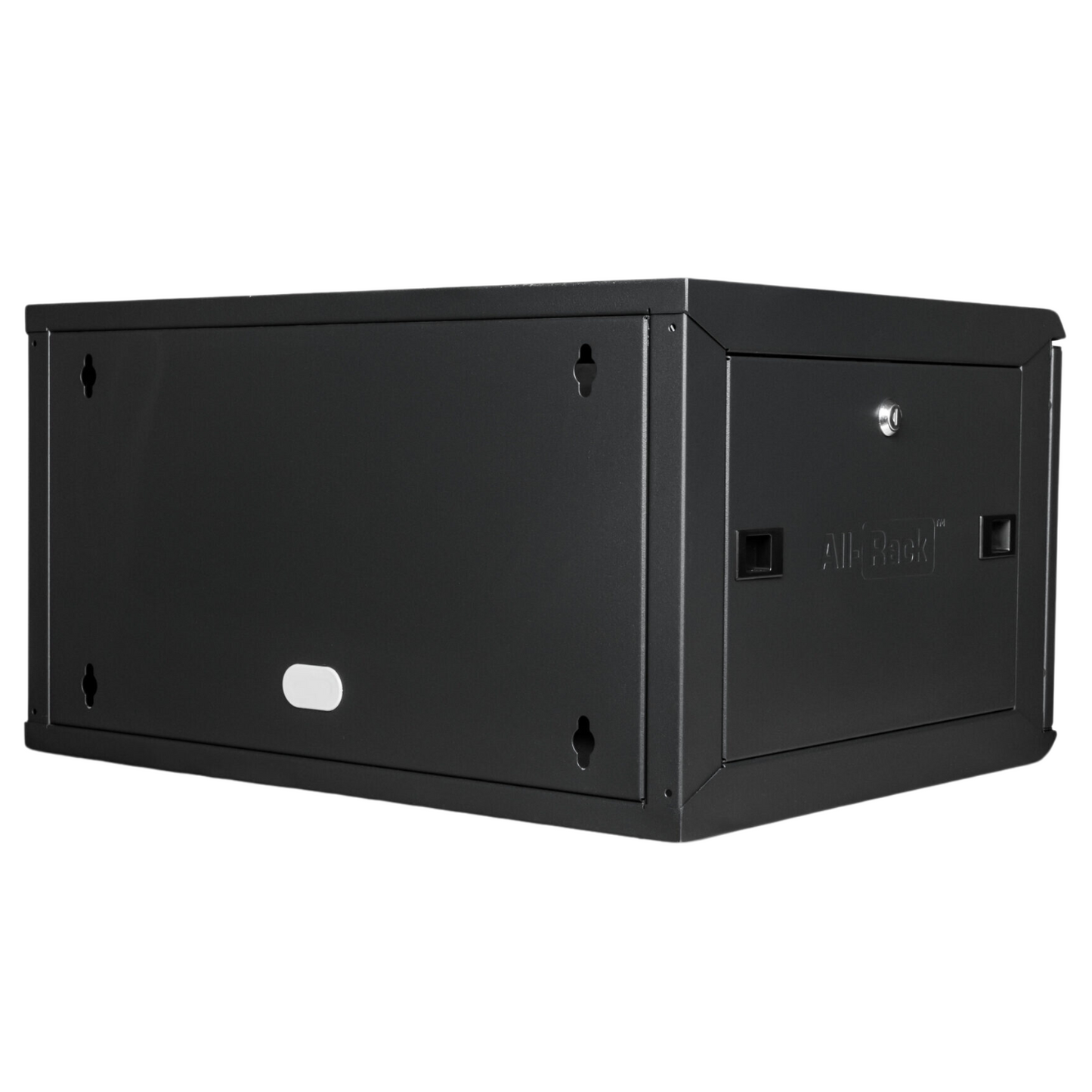

6u Wall Mounted Data Cabinet/Data Rack 450mm Deep - Black

6u Wall Mounted Data Cabinet/Data Rack 450mm Deep - Black

SKU: {{ Item Code }}:CAB6WB450BLK

Last Few Available

Regular price £ 129.49 GBP
Regular price Sale price £ 129.49 GBP
Sale Sold out
Including VAT + Free Delivery. If you spend over £150

6u Wall Mounted Data Cabinet/Data Rack 450mm Deep - Black

The product is perfect for single person installation with easy mounting brackets.

Available as pre built only.

Technical Specification

Loading Capacity: 40KG

Doors: 180 degree opening angle and can be mounted on left & right hand side with simple spring latch

Security: Lockable doors and side panels

Ventilation: Optional fan can be fitted if required

Material:

1.2mm mild steel construction

Toughened glass panel in steel framework door

Racks: Supplied with depth adjustable heavy-duty steel mounting profiles to take industry standard 19’’ patch panels, switches and other equipment.

Doors: Lockable, removable glazed front door. Lockable and removable steel side panels

Ventilation: Side panels vented. The roof has a cutout for 2 fan units top be mounted directly

Cable Entry: Cable access points on the lid and base of cabinet.

Colour: RAL9005

Features:

  • 6u 450mm Deep
  • 19 inch rack mounts
  • Front Lockable door
  • Provision Single Cooling fan (Not Supplied)
  • Cable entry on top and bottom. Fan Hole on top
  • NVR, DVR, Network or Audio Visual
  • Black Finish

Specs:

CABINET DIMENSIONS

Width: 565mm

External Depth: 450mm

Usable Depth: 300mm

Height: 310mm

Weight: 13KG

View full details

Other Sizes

How to choose which Data Cabinet size? How many U's do I need?

Data cabinets are measured in U’s. 1u is the equivalent of 3
spaces on an upright of the data cabinet mounting frame as pictured to the
left. Most equipment such as a patch panel, cable management bar or network
switches are measured in U’s. So, if you had for example 4 x 1u Patch panels
going into a data cabinet, you would need a 4u cabinet.
