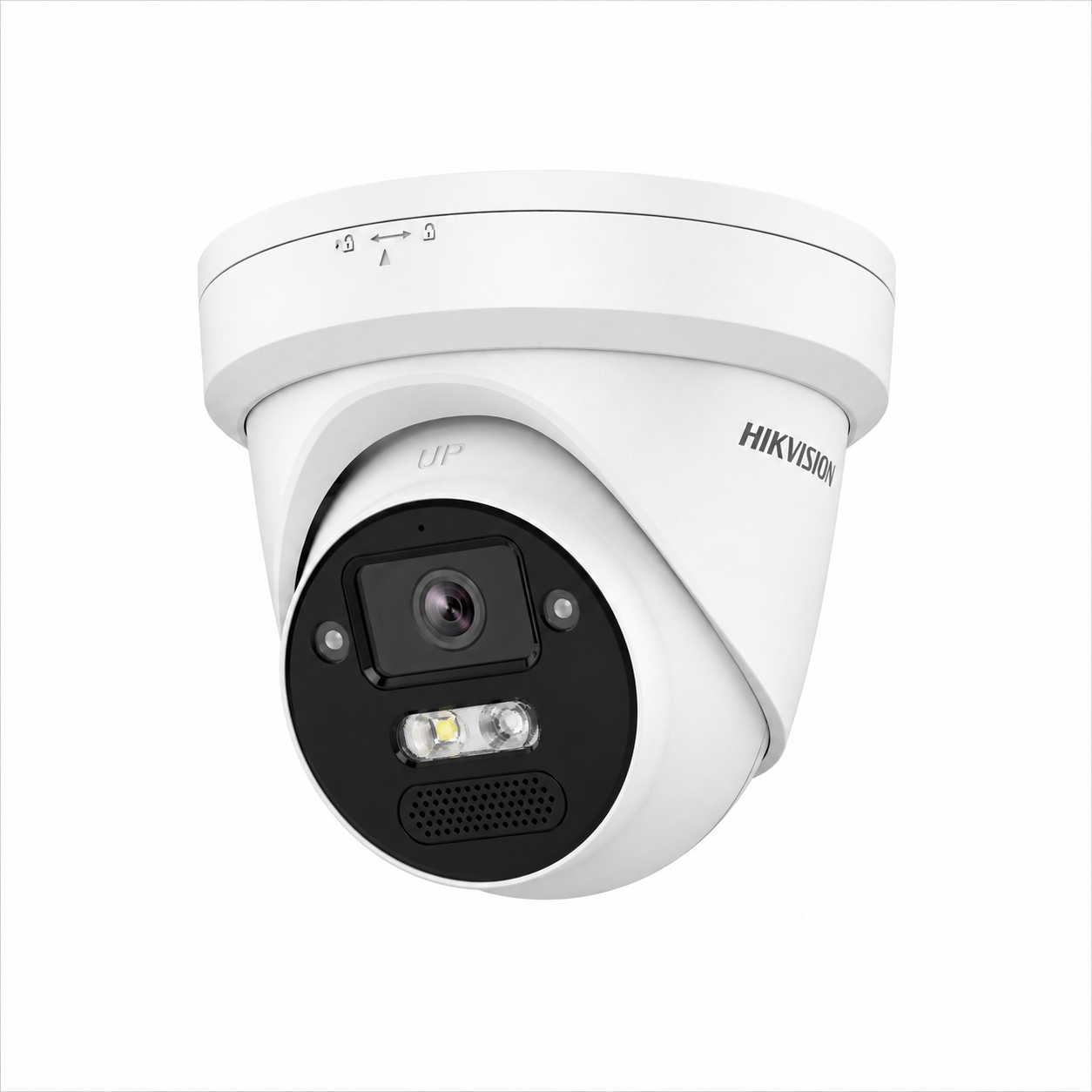

Hikvision DS-2CD23166G3-IS2UY/SL 2.8mm 16MP AcuSense DarkFighter Turret Camera

Hikvision DS-2CD23166G3-IS2UY/SL 2.8mm 16MP AcuSense DarkFighter Turret Camera

New

DS-2CD23166G3-IS2UY/SL

22 in stock

£ 279.99 Incl VAT
£ 279.99 Incl VAT
Sale Sold out
VAT included. Free Next Working Day Delivery Items over £129.99.
  • FREE! Next Working Day Delivery - Purchases over £129.99 (Mon - Fri) order before 3pm*
  • Paypal Pay in 3 Available - 3 Interest-Free Payments.
  • Genuine Hikvision UK Stock With a 3 Year Warranty.

Hikvision DS-2CD23166G3-IS2UY/SL 2.8mm 16MP AcuSense DarkFighter Turret IP Camera with Strobe & Audio Alarm

The Hikvision DS-2CD23166G3-IS2UY/SL 2.8mm is a premium 16 megapixel AcuSense fixed turret network camera designed for demanding residential, commercial and professional CCTV installations. Combining ultra-high-definition imaging with DarkFighter low-light technology, intelligent human and vehicle classification, active white strobe warning and built-in audible alarm, this camera provides advanced proactive security in a durable turret design.

With a maximum resolution of 4608 × 3456, the DS-2CD23166G3-IS2UY/SL delivers exceptionally detailed surveillance footage. Its 1/1.8" Progressive Scan CMOS sensor, F1.6 aperture and Powered by DarkFighter technology provide excellent image performance in challenging lighting conditions.

2.8mm Wide-Angle Lens

This version is fitted with a 2.8mm fixed lens, providing an approximately 94.5° horizontal field of view, 69.9° vertical field of view and 123.2° diagonal field of view.

The wide-angle 2.8mm lens makes this model particularly suitable for locations where broad scene coverage is required, including driveways, entrances, front gardens, retail areas, offices, warehouses and car parks.

16MP Ultra High Definition CCTV

The DS-2CD23166G3-IS2UY/SL records at resolutions up to 16 megapixels (4608 × 3456), delivering exceptional image detail across a wide surveillance area.

The 4:3 high-resolution image format also provides additional vertical scene coverage compared with many conventional widescreen CCTV cameras, making it particularly useful where both horizontal and vertical detail are important.

AcuSense Human & Vehicle Classification

Hikvision AcuSense technology uses deep-learning algorithms to identify and classify human and vehicle targets.

This helps reduce unnecessary alerts caused by irrelevant movement such as animals, vegetation or other environmental activity, allowing security operators to focus on events more likely to require attention.

Active White Strobe Light & Audible Warning

The /SL version features an integrated active white strobe light together with a built-in smart speaker for audible warnings.

When linked to supported intelligent events, the camera can provide an immediate visual and audible deterrent when suspicious activity is detected, helping discourage intruders before an incident develops.

Powered by DarkFighter

Hikvision's Powered by DarkFighter technology provides excellent low-light imaging and helps retain useful scene detail when ambient lighting is limited.

The camera can operate at illumination levels down to approximately 0.0008 Lux in colour at F1.6, while infrared illumination provides dependable monitoring in complete darkness.

Up to 40m Smart Supplement Light

Integrated supplementary lighting provides an illumination range of up to 40 metres, helping maintain useful surveillance coverage after dark.

Smart supplement light control helps optimise illumination according to the scene and target distance, reducing the risk of overexposing nearby subjects.

130 dB True WDR

The DS-2CD23166G3-IS2UY/SL incorporates 130 dB True Wide Dynamic Range, helping produce clearer images in difficult scenes containing strong contrasts between bright and dark areas.

This is particularly useful for entrances, doorways, loading areas and other locations affected by strong backlighting or changing light conditions.

Built-In Dual Microphones & Smart PA Speaker

An integrated arrayed dual-microphone system captures audio alongside the camera's video stream, providing additional context for recorded security events.

The built-in Smart PA speaker has a maximum output of 2W and can produce a sound pressure level of up to approximately 110 dB at 10cm, enabling powerful audible warnings and two-way audio functionality.

Intelligent Perimeter Protection

Advanced intelligent functions include line crossing detection, intrusion detection, region entrance detection and region exit detection.

These analytics can distinguish human and vehicle targets, helping improve alarm accuracy and reduce unnecessary event notifications.

Face Capture

The DS-2CD23166G3-IS2UY/SL supports face capture, adding an additional layer of intelligent video analytics for compatible CCTV systems.

Key Features

  • 16MP ultra-high-definition IP turret camera
  • 2.8mm fixed wide-angle lens
  • Approx. 94.5° horizontal field of view
  • Maximum resolution 4608 × 3456
  • 1/1.8" Progressive Scan CMOS image sensor
  • Hikvision AcuSense human and vehicle classification
  • Powered by DarkFighter low-light technology
  • Active white strobe light
  • Built-in Smart PA speaker
  • Arrayed dual built-in microphones
  • 130 dB True WDR
  • Supplement light range up to 40m
  • Smart Supplement Light
  • Face capture support
  • Line crossing and intrusion detection
  • Region entrance and region exit detection
  • Human and vehicle target filtering
  • H.265+ / H.265 / H.264+ / H.264 compression
  • Built-in microSD slot supporting up to 512GB
  • 1 alarm input and 1 alarm output
  • Audio input and audio output
  • PoE IEEE 802.3at support
  • IP67 weather resistance
  • IK10 impact protection
  • NEMA 4X anti-corrosion protection
  • Metal housing

Efficient H.265+ Compression

Support for H.265+ video compression helps reduce storage and bandwidth requirements while maintaining the image quality needed from a 16MP security camera.

This is particularly important in ultra-high-resolution CCTV systems where efficient storage use can have a significant impact on recording retention times.

Local microSD Recording up to 512GB

A built-in memory card slot supports microSD, microSDHC and microSDXC cards up to 512GB, allowing local edge recording directly within the camera.

Local storage can provide additional resilience alongside an NVR and can be useful in systems where edge recording or Automatic Network Replenishment is required.

IP67, IK10 & NEMA 4X Protection

The camera is designed for demanding indoor and outdoor CCTV installations with IP67 weather protection, helping protect the internal electronics from dust and water ingress.

It also provides IK10 impact resistance and NEMA 4X anti-corrosion protection, making the DS-2CD23166G3-IS2UY/SL particularly suitable for exposed or higher-risk installation locations.

PoE for Simple Installation

Support for IEEE 802.3at Power over Ethernet allows both power and network data to be supplied through a single Ethernet cable when connected to a compatible PoE NVR or network switch.

This simplifies installation and reduces the need for separate power cabling at the camera location.

Technical Specification

Manufacturer Hikvision
Model DS-2CD23166G3-IS2UY/SL
Camera Type Fixed Turret Network Camera
Resolution 16MP
Maximum Resolution 4608 × 3456
Image Sensor 1/1.8" Progressive Scan CMOS
Lens 2.8mm Fixed Lens
Horizontal Field of View Approx. 94.5°
Vertical Field of View Approx. 69.9°
Diagonal Field of View Approx. 123.2°
Aperture F1.6
Minimum Illumination 0.0008 Lux Colour / 0 Lux with IR
Supplement Light Range Up to 40m
Wide Dynamic Range 130 dB True WDR
Video Compression H.265+, H.265, H.264+, H.264, MJPEG
Built-In Microphone Arrayed Dual Microphone
Built-In Speaker Yes, Smart PA Speaker
Speaker Output Up to 2W
Strobe Light Active White Strobe Light
Alarm Input / Output 1 / 1
Local Storage microSD / microSDHC / microSDXC up to 512GB
Network Interface 1 × RJ45 Ethernet
PoE IEEE 802.3at, Class 4
Maximum Power Consumption Up to 18W
Weather Protection IP67
Impact Protection IK10
Anti-Corrosion Protection NEMA 4X
Material Metal Cover & Metal Main Body
Dimensions Ø 138.3 × 115.4mm
Weight Approx. 820g

Ideal for Wide-Angle Professional CCTV

The Hikvision DS-2CD23166G3-IS2UY/SL 2.8mm 16MP AcuSense Turret Camera is an excellent choice for installations requiring exceptional image detail, wide scene coverage, intelligent event detection and active deterrence.

It is particularly suitable for driveways, entrances, retail premises, offices, warehouses, schools, car parks, industrial sites and commercial properties.

With its 2.8mm wide-angle lens, 16MP resolution, AcuSense, DarkFighter, 130 dB WDR, up to 40m supplement light, dual microphones, Smart PA speaker and active white strobe warning, the DS-2CD23166G3-IS2UY/SL provides a powerful all-in-one IP CCTV solution.

Important: Availability and performance of intelligent functions can depend on firmware, camera configuration and compatibility with the connected NVR or surveillance system.
